esp8266 version 01 breadboard setup

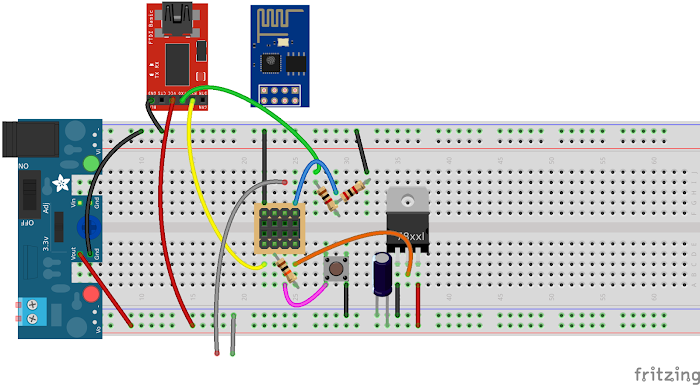

In order to use the esp8266 version01 on a breadboard we can use jumper cables or build a simple adaptor from stripboard (see image below)


To setup a breadboard with esp we need the following items:

Item Quantity
10K resistor 1
1K resistor 1
2K resistor 1
voltage regulator 3.3 volt 1
capacitor 16v 100uf 1
pushbutton 1
serial programmer 1
jumpercables several
breadboard power supply optional
